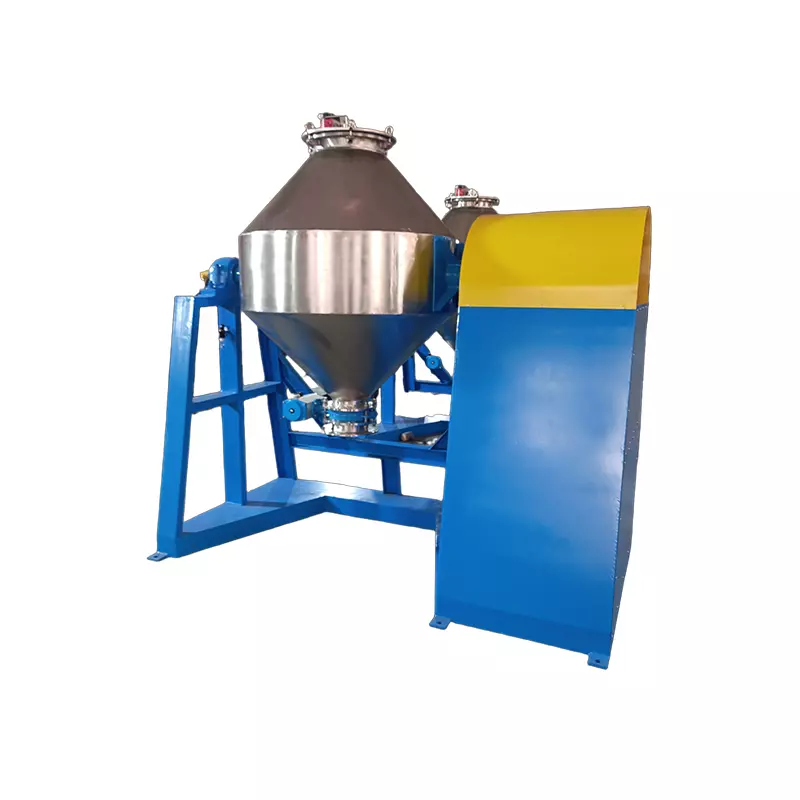

Overview of the Double Cone Mixer:
The double-cone mixer can achieve uniform material mixing, shorten the mixing time, reduce energy consumption, ensure product quality, and improve production efficiency. It has certain social and economic benefits and is an ideal equipment in solid powder mixing processes.
Principle and Characteristics of the Double Cone Mixer:
The mixing cylinder of this machine has a double-cone structure. The materials roll back and forth inside the cylinder. After rotating in one direction for a few minutes, it can also reverse. This accelerates the diffusion, flow and shearing of the materials, preventing any agglomeration during the mixing process. It ensures no currency segregation when mixing materials of different currencies and different finenesses, and achieves a rapid and uniform mixing effect.
The application of the double-cone mixer:
Suitable for powder metallurgy, electrical alloy, magnetic materials, battery powder, pearlescent pigments, chemical industry, medical field, food industry, etc.
Main technical parameters of the double-cone mixer:
|
Model
|
Total volume of mixing drum
|
Loading coefficient
|
Motor power
|
Overall dimensions
|
Installed weight
|
|
（m³）
|
（1/2）
|
（KW）
|
（Length × Width × Height）（mm）
|
（kg）
|
|
SZ-0.1
|
0.1
|
0.5
|
1.1
|
1580×650×1350
|
550
|
|
SZ-0.2
|
0.2
|
0.5
|
1.5
|
1800×750×1650
|
680
|
|
SZ-0.3
|
0.3
|
0.5
|
2.2
|
2050×850×1850
|
800
|
|
SZ-0.4
|
0.4
|
0.5
|
3
|
2300×950×1850
|
1000
|
|
SZ-0.5
|
0.5
|
0.5
|
3
|
2400×1050×2100
|
1200
|
|
SZ-0.8
|
0.8
|
0.5
|
4
|
2500×1200×2300
|
1400
|
|
SZ-1
|
1
|
0.5
|
4
|
2800×1500×2500
|
1800
|
|
SZ-2
|
2
|
0.5
|
5.5
|
3400×1600×2700
|
2100
|
|
SZ-3
|
3
|
0.5
|
7.5
|
3500×1680×2900
|
2400
|
|
SZ-4
|
4
|
0.5
|
7.5
|
3600×1800×3100
|
2600
|
|
SZ-5
|
5
|
0.5
|
11
|
3900×1900×3300
|
2800
|
|
SZ-6
|
6
|
0.5
|
11
|
4100×2000×3500
|
3000
|
|
SZ-8
|
8
|
0.5
|
15
|
4300×2200×3700
|
4000
|
