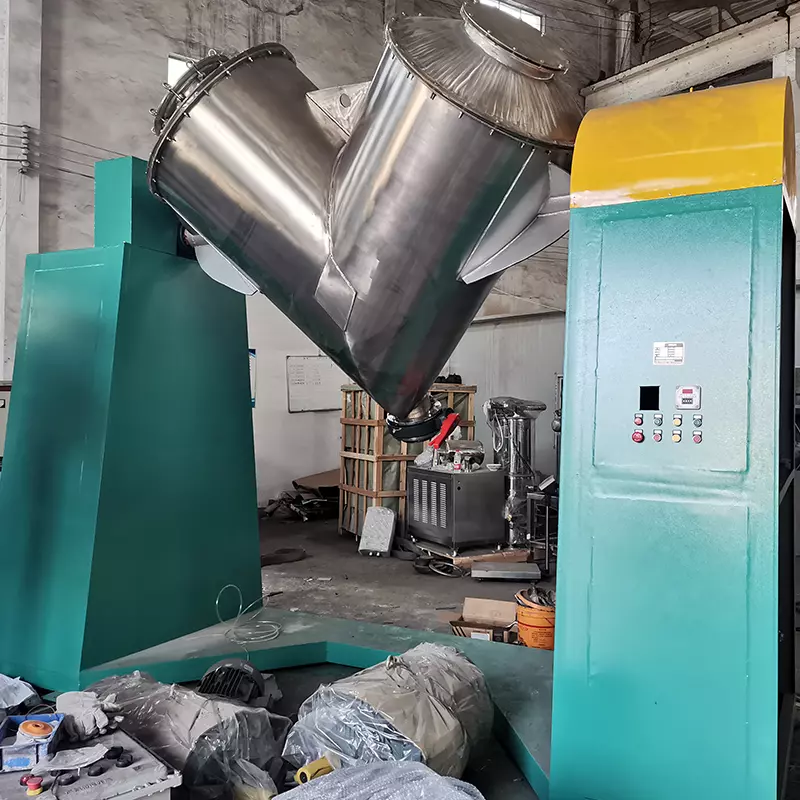

Introduction to the V-type mixer:
It is a new type of efficient and high-precision mixing equipment, suitable for the mixing of powder or granular materials in industries such as chemical engineering, food, medicine, feed, ceramics, metallurgy, etc. The machine has a reasonable structure, is simple to operate, and has a sealed inlet and outlet. The cylinder body is made of stainless steel, which is easy to clean and is one of the basic equipment of the enterprise. The self-rotation of this machine is completed by a set of motors and a cycloidal pinwheel reducer. It has a fast mixing speed, is suitable for materials with significant weight differences, and is more suitable for the mixing of materials with large variations in composition. The contact parts of the material are all made of stainless steel.
Working principle of the V-type mixer:
One end is equipped with a motor and a reducer. The power of the motor is transmitted to the reducer via a belt, and then the reducer transmits the power to the V-shaped barrel through a coupling. This causes the V-shaped barrel to continuously move up and down, left and right within the barrel for continuous mixing.
Efficient V-type mixing machine model application scope:
Due to its excellent structure, reasonable design concept, fast mixing speed, uniform mixture, convenient machine operation, easy cleaning, sturdy durability, compact structure, high technical content and other advantages, the pharmaceutical mixer is widely used in the industries of pharmaceuticals, food, medicine, pesticides, zinc oxide, detergents, veterinary drugs, compound fertilizers, feed, petroleum, metallurgy and mining, building materials industry, coatings, dyes, pigments, additives, calcium carbonate, biology, ceramics, chemical industry, flavoring and essences, chicken essence, seasonings, tea, chemical industry, building materials industry, coatings, plastics, rubber, seasonings, etc. for the mixing of powder materials.
Technical parameters of V-type mixer:
|
CHJ-model
|
V50
|
V200
|
V300
|
V500
|
V1000
|
V1500
|
V2000
|
|
VolumeL
|
0.05
|
0.2
|
0.3
|
0.5
|
1
|
1.5
|
2
|
|
Production capacity kg/time
|
15
|
50
|
80
|
150
|
300
|
400
|
850
|
|
Shaft rotation speedrpm
|
12
|
12
|
12
|
10
|
10
|
10
|
10
|
|
Motor powerkw
|
0.55
|
1.1
|
1.1
|
2.2
|
4
|
4
|
7.5
|
|
Overall dimensions (length x width x height) mm
|
1780×650×1850
|
1100×600×1100
|
1800×650×1850
|
2500×850×2420
|
2950×1400×3100
|
3190×1450×3100
|
3800×1600×3310
|
|
Total rotation height mm
|
1450
|
1850
|
1850
|
2450
|
3000
|
3100
|
3700
|
